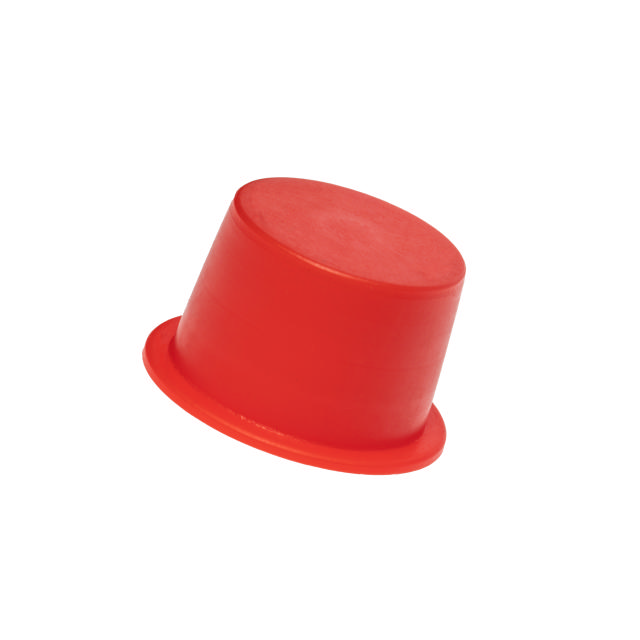

DETAIL2533 Universal solution for protection of ports, inspection holes, and fittings in hydraulic systems

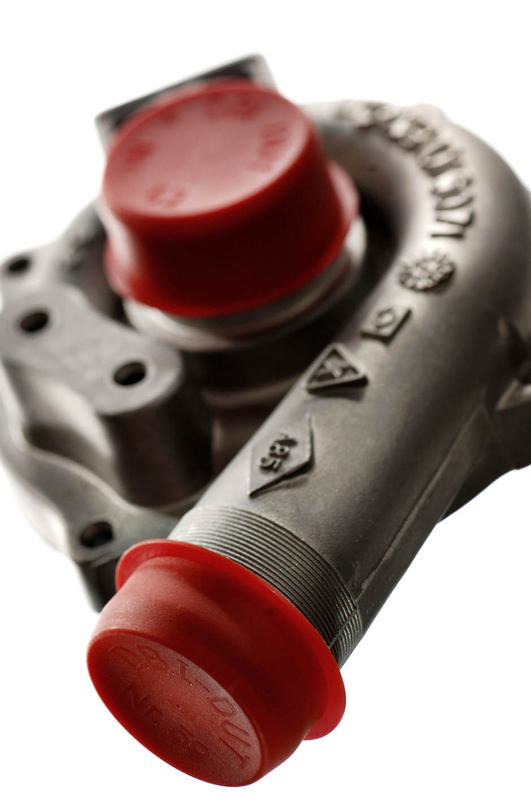

DETAIL2530 Turbocharger protective caps and plugs

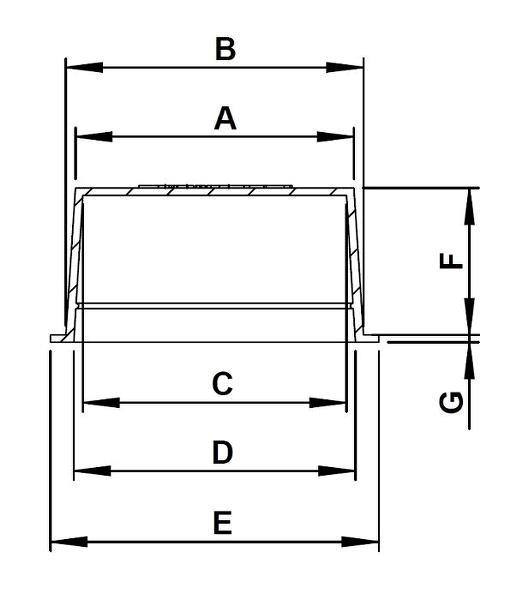

DETAIL2531 Universal Protector_NA technical drawing
Product no. X0045

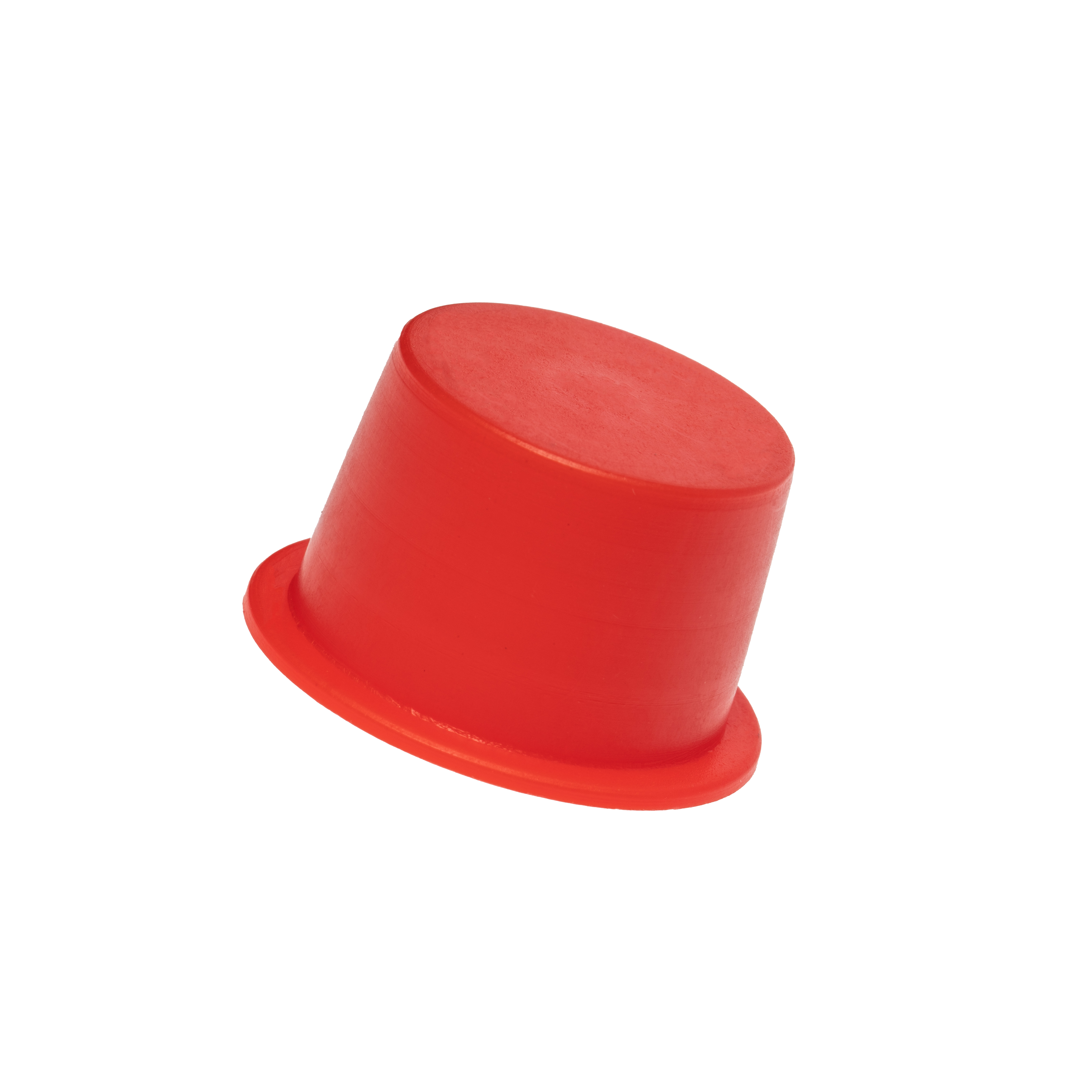

Universal Protectors (NA)

Conical solution for internal and external protection of ports, inspection holes, and fittings in hydraulic systems. Available with vent holes and in soft or high-temperature resistant materials.

Error compiling template "Designs/Swift-v2/Paragraph/CustomProductActions.cshtml"
Line 29: Argument 1: cannot convert from 'Dynamicweb.Frontend.LinkViewModel' to 'string?'

1 // <auto-generated/> 2 #pragma warning disable 1591 3 namespace CompiledRazorTemplates.Dynamic 4 { 5 #line hidden 6 using System.Threading.Tasks; 7 using System; 8 using System.Collections.Generic; 9 using System.Linq; 10 using Dynamicweb.Core; 11 using Dynamicweb.Ecommerce.ProductCatalog; 12 internal class RazorEngine_b724a0df5e86457e8e011bc12a7e982e : Dynamicweb.Rendering.ViewModelTemplate<Dynamicweb.Frontend.ParagraphViewModel> 13 { 14 #pragma warning disable 1998 15 public async override global::System.Threading.Tasks.Task ExecuteAsync() 16 { 17 WriteLiteral("\r\n"); 18 19 ProductViewModel product = null; 20 if (Dynamicweb.Context.Current.Items.Contains("ProductDetails")) 21 { 22 product = (ProductViewModel)Dynamicweb.Context.Current.Items["ProductDetails"]; 23 } 24 25 var iconPath = "Files/Images/Icons/Custom/"; 26 27 var productFamilyParagraphLink = Pageview.SearchFriendlyUrl + "#" + Model.Item.GetLink("ProductFamilyParagraph"); 28 var signInPageLink = Model.Item.GetLink("SignInPage"); 29 bool hasSignInPageLink = !string.IsNullOrWhiteSpace(signInPageLink); 30 31 bool showPricesWithVat = Dynamicweb.Ecommerce.Common.Context.DisplayPricesWithVat; 32 bool neverShowVat = string.IsNullOrEmpty(showPricesWithVat.ToString()); 33 string unitId = !string.IsNullOrEmpty(Dynamicweb.Context.Current.Request.Form.Get("UnitId")) ? Dynamicweb.Context.Current.Request.Form.Get("UnitId") : string.Empty; 34 WriteLiteral("\r\n"); 35 if (product is object) 36 { 37 if (Pageview.User == null) { 38 39 string anonymousUsersLimitations = Pageview.AreaSettings.GetRawValueString("AnonymousUsers", ""); 40 bool hideAddToCart = anonymousUsersLimitations.Contains("cart"); 41 hideAddToCart = Pageview.IsVisualEditorMode ? false : hideAddToCart; 42 43 WriteLiteral("\t\t<div class=\"container\">\r\n\t\t\t<div class=\"row\">\r\n"); 44 if (!hideAddToCart) 45 { 46 WriteLiteral("\t\t\t\t\t<div class=\"col-4 border-end ps-0 d-flex flex-column justify-content-between\">\r\n\t\t\t\t\t\t<div class=\"text-lg semi-bold mb-2\">"); 47 Write(Translate("Custom.ProductActions.Try", "Try before you decide")); 48 WriteLiteral("</div>\r\n\t\t\t\t\t\t<a"); 49 BeginWriteAttribute("href", " href=\"", 1581, "\"", 1615, 1); 50 WriteAttributeValue("", 1588, productFamilyParagraphLink, 1588, 27, false); 51 EndWriteAttribute(); 52 WriteLiteral(" class=\"btn btn-primary w-100\" data-dw-button=\"primary\">\r\n\t\t\t\t\t\t\t<span>"); 53 Write(Translate("Custom.ProductActions.Try.ButtonText", "Request sample")); 54 WriteLiteral("<span class=\"ps-2\">"); 55 Write(ReadFile(iconPath + "arrow-down.svg")); 56 WriteLiteral("</span></span>\r\n\t\t\t\t\t\t</a>\r\n\t\t\t\t\t</div>\r\n"); 57 } 58 WriteLiteral("\t\t\t\t<div"); 59 BeginWriteAttribute("class", " class=\"", 1868, "\"", 1962, 6); 60 WriteAttributeValue("", 1876, "col-", 1876, 4, true); 61 WriteAttributeValue("", 1880, hideAddToCart ? "6" : "4", 1880, 28, false); 62 WriteAttributeValue(" ", 1908, "border-end", 1909, 11, true); 63 WriteAttributeValue(" ", 1919, "d-flex", 1920, 7, true); 64 WriteAttributeValue(" ", 1926, "flex-column", 1927, 12, true); 65 WriteAttributeValue(" ", 1938, "justify-content-between", 1939, 24, true); 66 EndWriteAttribute(); 67 WriteLiteral(">\r\n\t\t\t\t\t<div class=\"text-lg semi-bold mb-2\">"); 68 Write(Translate("Custom.ProductActions.Variants", "Variants")); 69 WriteLiteral("</div>\r\n\t\t\t\t\t<a"); 70 BeginWriteAttribute("href", " href=\"", 2078, "\"", 2112, 1); 71 WriteAttributeValue("", 2085, productFamilyParagraphLink, 2085, 27, false); 72 EndWriteAttribute(); 73 WriteLiteral(" class=\"btn btn-outline-secondary w-100\" data-dw-button=\"outline-secondary\">\r\n\t\t\t\t\t\t<span>"); 74 Write(Translate("Custom.ProductActions.Variants.ButtonText", "View products")); 75 WriteLiteral("<span class=\"ps-2\">"); 76 Write(ReadFile(iconPath + "arrow-down.svg")); 77 WriteLiteral("</span></span>\r\n\t\t\t\t\t</a>\r\n\t\t\t\t</div>\r\n\t\t\t\t<div"); 78 BeginWriteAttribute("class", " class=\"", 2379, "\"", 2462, 5); 79 WriteAttributeValue("", 2387, "col-", 2387, 4, true); 80 WriteAttributeValue("", 2391, hideAddToCart ? "6" : "4", 2391, 28, false); 81 WriteAttributeValue(" ", 2419, "d-flex", 2420, 7, true); 82 WriteAttributeValue(" ", 2426, "flex-column", 2427, 12, true); 83 WriteAttributeValue(" ", 2438, "justify-content-between", 2439, 24, true); 84 EndWriteAttribute(); 85 WriteLiteral(">\r\n\t\t\t\t\t<div class=\"text-lg semi-bold d-inline-flex align-items-center mb-2\">\r\n\t\t\t\t\t\t<div class=\"rounded-circle green me-1\">\r\n\t\t\t\t\t\t</div>\r\n\t\t\t\t\t\t"); 86 Write(Translate("Custom.ProductActions.Stocklabel", "In stock")); 87 WriteLiteral("\r\n\t\t\t\t\t</div>\r\n"); 88 if (!hideAddToCart && hasSignInPageLink) 89 { 90 WriteLiteral("\t\t\t\t\t\t<a"); 91 BeginWriteAttribute("href", " href=\"", 2746, "\"", 2768, 1); 92 WriteAttributeValue("", 2753, signInPageLink, 2753, 15, false); 93 EndWriteAttribute(); 94 WriteLiteral(" class=\"btn btn-outline-secondary w-100\" data-dw-button=\"outline-secondary\">\r\n\t\t\t\t\t\t\t<span>"); 95 Write(Translate("Custom.ProductActions.SignIn.ButtonText", "Sign in to buy")); 96 WriteLiteral("<span class=\"ps-2\">"); 97 Write(ReadFile(iconPath + "shopping-cart.svg")); 98 WriteLiteral("</span></span>\r\n\t\t\t\t\t\t</a>\r\n"); 99 } 100 WriteLiteral("\t\t\t\t</div>\r\n\t\t\t</div>\r\n\t\t</div>\r\n"); 101 102 } 103 else { 104 WriteLiteral("\t\t<div class=\"container\">\r\n\t\t\t<div class=\"row align-items-center\">\r\n\t\t\t<div class=\"col-6\">\r\n\t\t\t\t\t<div class=\"text-sm medium mb-1\">"); 105 Write(Translate("Custom.ProductActions.Prices", "Prices starting from")); 106 WriteLiteral("</div>\r\n\t\t\t\t\t<div class=\"mb-1\">\r\n"); 107 if (!showPricesWithVat && !neverShowVat) 108 { 109 string price = !string.IsNullOrEmpty(unitId) ? product.GetPrice(unitId).Price.PriceWithoutVatFormatted : product.Price.PriceWithoutVatFormatted; 110 111 if (product?.VariantInfo?.VariantInfo != null) 112 { 113 price = product?.VariantInfo?.PriceMin?.PriceWithoutVatFormatted != null ? product.VariantInfo.PriceMin.PriceWithoutVatFormatted : price; 114 } 115 116 WriteLiteral("\t\t\t\t\t\t\t<span class=\"display-sm bold\">"); 117 Write(price); 118 WriteLiteral("</span>\r\n\t\t\t\t\t\t\t<span class=\"text-sm medium opacity-75\">"); 119 Write(Translate("Custom.ProductActions.Prices.WithoutVat", "ex. VAT")); 120 WriteLiteral("</span>\r\n"); 121 } 122 else 123 { 124 string price = !string.IsNullOrEmpty(unitId) ? product.GetPrice(unitId).Price.PriceFormatted : product.Price.PriceFormatted; 125 126 if (product?.VariantInfo?.VariantInfo != null) 127 { 128 price = product?.VariantInfo?.PriceMin?.PriceFormatted != null ? product.VariantInfo.PriceMin.PriceFormatted : price; 129 } 130 131 132 WriteLiteral("\t\t\t\t\t\t\t<span class=\"display-sm bold\">"); 133 Write(price); 134 WriteLiteral("</span>\r\n\t\t\t\t\t\t\t<span class=\"text-sm medium opacity-75\">"); 135 Write(Translate("Custom.ProductActions.Prices.WithVat", "incl. VAT")); 136 WriteLiteral("</span>\r\n"); 137 } 138 WriteLiteral("\t\t\t\t\t</div>\r\n\t\t\t\t\t<div class=\"fs-7 d-inline-flex align-items-center\">\r\n\t\t\t\t\t\t<div class=\"rounded-circle green me-1\">\r\n\t\t\t\t\t\t</div>\r\n <div class=\"text-sm medium opacity-75\">"); 139 Write(Translate("Custom.ProductActions.Stocklabel", "In stock")); 140 WriteLiteral("</div>\r\n\t\t\t\t\t</div>\r\n\t\t\t</div>\r\n\t\t\t<div class=\"col-6\">\r\n\t\t\t\t\t<a"); 141 BeginWriteAttribute("href", " href=\"", 4781, "\"", 4815, 1); 142 WriteAttributeValue("", 4788, productFamilyParagraphLink, 4788, 27, false); 143 EndWriteAttribute(); 144 WriteLiteral(" class=\"btn btn-primary w-100\" data-dw-button=\"primary\">\r\n\t\t\t\t\t\t<span>"); 145 Write(Translate("Custom.ProductActions.SignedIn.ButtonText", "Buy products")); 146 WriteLiteral("<span class=\"ps-2\">"); 147 Write(ReadFile(iconPath + "shopping-cart.svg")); 148 WriteLiteral("</span></span>\r\n\t\t\t\t\t</a>\r\n\t\t\t</div>\r\n\t\t\t</div>\r\n\t\t</div>\r\n"); 149 } 150 151 } 152 else if (Pageview.IsVisualEditorMode) 153 { 154 WriteLiteral("\t<div class=\"alert alert-dark m-0\" role=\"alert\">\r\n\t\t<span>"); 155 Write(Translate("The product actions will be shown here, if available")); 156 WriteLiteral("</span>\r\n\t</div>\r\n"); 157 } 158 } 159 #pragma warning restore 1998 160 } 161 } 162 #pragma warning restore 1591 163

1 @inherits Dynamicweb.Rendering.ViewModelTemplate<Dynamicweb.Frontend.ParagraphViewModel> 2 @using Dynamicweb.Core 3 @using Dynamicweb.Ecommerce.ProductCatalog 4 5 @{ 6 ProductViewModel product = null; 7 if (Dynamicweb.Context.Current.Items.Contains("ProductDetails")) 8 { 9 product = (ProductViewModel)Dynamicweb.Context.Current.Items["ProductDetails"]; 10 } 11 12 var iconPath = "Files/Images/Icons/Custom/"; 13 14 var productFamilyParagraphLink = Pageview.SearchFriendlyUrl + "#" + Model.Item.GetLink("ProductFamilyParagraph"); 15 var signInPageLink = Model.Item.GetLink("SignInPage"); 16 bool hasSignInPageLink = !string.IsNullOrWhiteSpace(signInPageLink); 17 18 bool showPricesWithVat = Dynamicweb.Ecommerce.Common.Context.DisplayPricesWithVat; 19 bool neverShowVat = string.IsNullOrEmpty(showPricesWithVat.ToString()); 20 string unitId = !string.IsNullOrEmpty(Dynamicweb.Context.Current.Request.Form.Get("UnitId")) ? Dynamicweb.Context.Current.Request.Form.Get("UnitId") : string.Empty; 21 } 22 23 @if (product is object) 24 { 25 if (Pageview.User == null) { 26 27 string anonymousUsersLimitations = Pageview.AreaSettings.GetRawValueString("AnonymousUsers", ""); 28 bool hideAddToCart = anonymousUsersLimitations.Contains("cart"); 29 hideAddToCart = Pageview.IsVisualEditorMode ? false : hideAddToCart; 30 31 <div class="container"> 32 <div class="row"> 33 @if (!hideAddToCart) 34 { 35 <div class="col-4 border-end ps-0 d-flex flex-column justify-content-between"> 36 <div class="text-lg semi-bold mb-2">@Translate("Custom.ProductActions.Try", "Try before you decide")</div> 37 <a href="@productFamilyParagraphLink" class="btn btn-primary w-100" data-dw-button="primary"> 38 <span>@Translate("Custom.ProductActions.Try.ButtonText", "Request sample")<span class="ps-2">@ReadFile(iconPath + "arrow-down.svg")</span></span> 39 </a> 40 </div> 41 } 42 <div class="col-@(hideAddToCart ? "6" : "4") border-end d-flex flex-column justify-content-between"> 43 <div class="text-lg semi-bold mb-2">@Translate("Custom.ProductActions.Variants", "Variants")</div> 44 <a href="@productFamilyParagraphLink" class="btn btn-outline-secondary w-100" data-dw-button="outline-secondary"> 45 <span>@Translate("Custom.ProductActions.Variants.ButtonText", "View products")<span class="ps-2">@ReadFile(iconPath + "arrow-down.svg")</span></span> 46 </a> 47 </div> 48 <div class="col-@(hideAddToCart ? "6" : "4") d-flex flex-column justify-content-between"> 49 <div class="text-lg semi-bold d-inline-flex align-items-center mb-2"> 50 <div class="rounded-circle green me-1"> 51 </div> 52 @Translate("Custom.ProductActions.Stocklabel", "In stock") 53 </div> 54 @if (!hideAddToCart && hasSignInPageLink) 55 { 56 <a href="@signInPageLink" class="btn btn-outline-secondary w-100" data-dw-button="outline-secondary"> 57 <span>@Translate("Custom.ProductActions.SignIn.ButtonText", "Sign in to buy")<span class="ps-2">@ReadFile(iconPath + "shopping-cart.svg")</span></span> 58 </a> 59 } 60 </div> 61 </div> 62 </div> 63 64 } 65 else { 66 <div class="container"> 67 <div class="row align-items-center"> 68 <div class="col-6"> 69 <div class="text-sm medium mb-1">@Translate("Custom.ProductActions.Prices", "Prices starting from")</div> 70 <div class="mb-1"> 71 @if (!showPricesWithVat && !neverShowVat) 72 { 73 string price = !string.IsNullOrEmpty(unitId) ? product.GetPrice(unitId).Price.PriceWithoutVatFormatted : product.Price.PriceWithoutVatFormatted; 74 75 if (product?.VariantInfo?.VariantInfo != null) 76 { 77 price = product?.VariantInfo?.PriceMin?.PriceWithoutVatFormatted != null ? product.VariantInfo.PriceMin.PriceWithoutVatFormatted : price; 78 } 79 80 <span class="display-sm bold">@price</span> 81 <span class="text-sm medium opacity-75">@Translate("Custom.ProductActions.Prices.WithoutVat", "ex. VAT")</span> 82 } 83 else 84 { 85 string price = !string.IsNullOrEmpty(unitId) ? product.GetPrice(unitId).Price.PriceFormatted : product.Price.PriceFormatted; 86 87 if (product?.VariantInfo?.VariantInfo != null) 88 { 89 price = product?.VariantInfo?.PriceMin?.PriceFormatted != null ? product.VariantInfo.PriceMin.PriceFormatted : price; 90 } 91 92 93 <span class="display-sm bold">@price</span> 94 <span class="text-sm medium opacity-75">@Translate("Custom.ProductActions.Prices.WithVat", "incl. VAT")</span> 95 } 96 </div> 97 <div class="fs-7 d-inline-flex align-items-center"> 98 <div class="rounded-circle green me-1"> 99 </div> 100 <div class="text-sm medium opacity-75">@Translate("Custom.ProductActions.Stocklabel", "In stock")</div> 101 </div> 102 </div> 103 <div class="col-6"> 104 <a href="@productFamilyParagraphLink" class="btn btn-primary w-100" data-dw-button="primary"> 105 <span>@Translate("Custom.ProductActions.SignedIn.ButtonText", "Buy products")<span class="ps-2">@ReadFile(iconPath + "shopping-cart.svg")</span></span> 106 </a> 107 </div> 108 </div> 109 </div> 110 } 111 112 } 113 else if (Pageview.IsVisualEditorMode) 114 { 115 <div class="alert alert-dark m-0" role="alert"> 116 <span>@Translate("The product actions will be shown here, if available")</span> 117 </div> 118 } 119
All benefits
Internal + external fit
one solution, many uses
Material options
soft or heat-resistant for your needs
Optional venting
supports pressure-sensitive systems
Product specifications
CO2
A mm
B mm
C mm
D mm
E mm
F mm
G mm
NA0033A-AA00A Red Recycled LDPE 0 2.5 3.3 1.1 2.1 4.9 5 0
NA0035A-AA00A Red Recycled LDPE 0 2.8 3.5 1.3 2.1 5 4 0
NA0040A-AA00A Red Recycled LDPE 0 1.3 4 1.1 2.1 5.9 8 0
NA0046A-AA00A Red Recycled LDPE 0 4.1 4.6 1 2.1 7.4 5.5 0
NA0047A-AA00A Red Recycled LDPE 0 3.9 4.4 2 2 7.6 3.1 0
NA0048A-AA00A Red Recycled LDPE 0 3.1 4.9 1.2 2.9 10 8 0
NA0055A-AA00A Red Recycled LDPE 0 4.8 5.5 3.2 4 8 5.7 0
NA0059A-AA00A Red Recycled LDPE 0 5 5.9 3.6 4.6 7.4 8 0
NA0062A-AA00A Red Recycled LDPE 0 5.5 6.2 4 4.8 8.9 5.9 0
NA0067A-AA00A Red Recycled LDPE 0 6 6.7 4.5 5.3 10.6 5.9 0
NA0074A-AA00A Red Recycled LDPE 0 6.8 7.4 5 5.6 11.5 6.8 0
NA0085A-AA00A Red Recycled LDPE 0 7.6 8.5 6 7.1 12 8 0
NA0095A-AA00A Red Recycled LDPE 0 8.3 9.4 6.9 7.9 13.2 9 0
NA0098A-AA00A Red Recycled LDPE 0 8.3 9.9 6.8 8 12.8 9 0
NA0106A-AA00A Red Recycled LDPE 0 9.2 10.6 7.6 9 14.1 10 0
NA0110A-AA00A Red Recycled LDPE 0 10.1 11 8.2 9.5 15 9.9 0
NA0123A-AA00A Red Recycled LDPE 0 10.8 12.5 9.2 10.8 16.2 9.6 0
NA0123A-AE00A Red EVA 0 10.8 12.6 9 10.6 16 9.6 0
NA0127A-AA00A Red Recycled LDPE 0 11.4 12.8 10.1 11.3 16.9 9.8 0
NA0138A-AA00A Red Recycled LDPE 0 12 13.8 10.6 12.1 17.9 11.1 0
NA0138D-AA00A Red Recycled LDPE 0 12 13.8 10.6 12.1 17.9 11.1 0
NA0145A-AA00A Red Recycled LDPE 0 13.1 14.5 11.5 12.9 19 11.1 0
NA0150A-AA00A Red Recycled LDPE 0 13.5 14.7 12 13.2 19 11.7 0
NA0154A-AA00A Red Recycled LDPE 0 13.9 15.4 12.4 14 19.1 12 0
NA0157A-AA00A Red Recycled LDPE 0 14.2 15.7 13 14.7 18.9 12.8 0
NA0168A-AA00A Red Recycled LDPE 0 16.7 16.8 15.4 15.5 24 8 0
NA0169A-AA00A Red Recycled LDPE 0 14.9 16.8 14 15.5 20.3 12.8 0
NA0169A-AE10A Natural EVA 0 14.9 16.8 14 15.7 20.5 13 0
NA0169A-GA10A Natural PA66 0 15.5 17.2 13.8 15.8 20.6 13.2 0
NA0169D-AA00A Red Recycled LDPE 0 14.9 16.8 14 15.5 20.3 12.8 0
NA0180A-AA00A Red Recycled LDPE 0 16.3 17.95 14.4 16.3 20.1 13.4 0
NA0190A-AA00A Red Recycled LDPE 0 17.2 18.9 15.8 17.6 23 14 0
NA0200A-AA00A Red Recycled LDPE 0 18.7 20 17.4 18.7 24 9 0
NA0200D-AA00A Red Recycled LDPE 0 18.7 20 17.4 18.7 24 9 0
NA0204A-AA00A Red Recycled LDPE 0 18.2 20.2 16.4 18.8 24.2 13.9 0
NA0204L-AA00A Red Recycled LDPE 0 18.2 20.2 16.4 18.8 24.2 13.9 0
NA0210A-AA00A Red Recycled LDPE 0 19.8 21 17.1 18.4 26.9 8.9 0
NA0211A-AA00A Red Recycled LDPE 0 19.3 21.1 17.6 19.5 25.3 13.7 0
NA0211L-AA00A Red Recycled LDPE 0 19.3 21.1 17.6 19.5 25.3 13.7 0
NA0217A-AA00A Red Recycled LDPE 0 20.1 21.8 18.6 20.3 26 17.2 0
NA0225A-AA00A Red Recycled LDPE 0 20.4 22.5 18.9 20.9 25.9 15 0
NA0229A-AA00A Red Recycled LDPE 0 20.3 22.9 18.4 21.5 25.7 16.6 0
NA0232A-AA00A Red Recycled LDPE 0 21.4 23.4 19.7 21.5 27.7 15 0
NA0255A-AA00A Red Recycled LDPE 0 22.2 25.5 20.2 23.3 28.8 15.5 0
NA0261A-AA00A Red Recycled LDPE 0 24.2 26 22.4 23.5 29.5 13.7 0
NA0261D-AA00A Red Recycled LDPE 0 24.2 26 22.4 23.5 29.5 13.7 0
NA0268A-AA00A Red Recycled LDPE 0 25.2 26.8 23.7 25.4 30.7 13.9 0
NA0268L-AA00A Red Recycled LDPE 0 25.2 26.8 23.7 25.4 30.7 13.9 0
NA0279A-AA00A Red Recycled LDPE 0 24.6 28 22.8 26 36.3 16.6 0
NA0284A-AA00A Red Recycled LDPE 0 27.5 28.6 25.3 26.7 35 13.7 0
NA0284D-AA00A Red Recycled LDPE 0 27.5 28.6 25.3 26.7 35 13.7 0
NA0298A-AA00A Red Recycled LDPE 0 26.8 29.8 25.3 28.2 32.4 16.4 0
NA0306A-AA00A Red Recycled LDPE 0 27.9 30.6 26 28.8 34.8 13.9 0
NA0314Z-AA10B Natural Recycled LDPE 0 31.4 31.4 30.2 30.2 35.5 8.5 0
NA0320A-AA00A Red Recycled LDPE 0 29.7 32 27.9 30.3 36.2 17 0
NA0320L-AA00A Red Recycled LDPE 0 29.7 32 27.9 30.3 36.2 17 0
NA0327A-AA00A Red Recycled LDPE 0 30.9 33.2 29.6 31.5 35.5 17.8 0
NA0327L-AA00A Red Recycled LDPE 0 30.9 33.2 29.6 31.5 35.5 17.8 0
NA0328A-AA00A Red 0 30.7 32.8 29.1 31.1 36.2 16.2 0
NA0337A-AA00A Red Recycled LDPE 0 31.3 33.7 29.8 32.2 37.3 16.4 0
NA0337L-AA00A Red Recycled LDPE 0 31.3 33.7 29.8 32.2 37.3 16.4 0
NA0349A-AA00A Red Recycled LDPE 0 33.1 35.2 31.7 33.4 39.5 16.7 0
NA0349L-AA00A Red Recycled LDPE 0 33.1 35.2 31.7 33.4 39.5 16.7 0
NA0369Z-AA20A Yellow Recycled LDPE 0 33.1 36.9 31.5 34.7 40 21 0
NA0377A-AA00A Red Recycled LDPE 0 34.3 37.5 33 36 41.8 17.5 0
NA0377L-AA00A Red Recycled LDPE 0 34.3 37.5 33 36 41.8 17.5 0
NA0381A-AA00A Red Recycled LDPE 0 35.6 38.2 33.7 36.5 41 16.5 0
NA0381L-AA00A Red Recycled LDPE 0 35.6 38.2 33.7 36.5 41 16.5 0
NA0395A-AA00A Red Recycled LDPE 0 36.8 39.5 35.3 38 45.7 16.8 0
NA0395K-AA00A Red Recycled LDPE 0 36.8 39.5 35.3 38 45.7 16.8 0
NA0400A-AA00A Red Recycled LDPE 0 38 40 36.6 38.4 44.6 17.1 0
NA0400L-AA00A Red Recycled LDPE 0 38 40 36.6 38.4 44.6 17.1 0
NA0405A-AA00A Red 0 37.8 40.5 36.8 39.2 46.5 18.3 0
NA0405L-AA00A Red Recycled LDPE 0 37.8 40.5 36.8 39.2 46.5 18.3 0
NA0415B-AA00B Red 0 37.6 46.5 14 0 0 0 0
NA0419A-AA00A Red Recycled LDPE 0 39.3 42.2 38 40.8 46.8 19.9 0
NA0419L-AA00A Red Recycled LDPE 0 39.3 42.2 38 40.8 46.8 19.9 0
NA0438A-AA00A Red Recycled LDPE 0 41.4 43.7 40 42 48 17.9 0
NA0438L-AA00A Red Recycled LDPE 0 41.4 43.7 40 42 48 17.9 0
NA0440A-AA00A Red Recycled LDPE 0 42 44.5 40.1 42.6 47.3 16.8 0
NA0440D-AA00A Red Recycled LDPE 0 42 44.5 40.1 42.6 47.3 16.8 0
NA0466A-AA00A Red Recycled LDPE 0 44.2 46.4 42.4 44.6 50 19 0
NA0466D-AA00A Red Recycled LDPE 0 44.2 46.4 42.4 44.6 50 19 0
NA0473A-AA00A Red Recycled LDPE 0 44.4 47.3 42.3 44.9 51.3 18.7 0
NA0473L-AA00A Red Recycled LDPE 0 44.4 47.3 42.3 44.9 51.3 18.7 0
NA0480A-AA00A Red Recycled LDPE 0 45.6 48 43.5 45.9 52.4 18.9 0
NA0484A-AA00A Red Recycled LDPE 0 46.2 48.7 44.6 48.8 52.7 18.5 0
NA0490A-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9 0
NA0490B-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9 0
NA0490L-AA00A Red Recycled LDPE 0 46.9 49.3 45.7 48.1 53.8 18.9 0
NA0504A-AA00A Red Recycled LDPE 0 49.4 49.7 46.4 47.5 57.5 8.9 0
NA0507A-AA00A Red Recycled LDPE 0 49.6 51.8 47.8 50.1 56.5 18.8 0
NA0507L-AA00A Red Recycled LDPE 0 49.6 51.8 47.8 50.1 56.5 18.8 0
NA0510A-AA00A Red Recycled LDPE 0 47.9 52.3 46 48.7 59.4 14.5 0
NA0541A-AA00A Red Recycled LDPE 0 50.35 54.3 48.5 52.4 60.2 17.7 0
NA0543A-AA00A Red Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8 0
NA0543A-AA90A Blue Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8 0
NA0543D-AA00A Red Recycled LDPE 0 50.8 54.3 49.4 52.6 59.6 19.8 0
NA0558A-AA00A Red Recycled LDPE 0 51.7 55.5 50.1 53.4 58.2 19.6 0
NA0558L-AA00A Red Recycled LDPE 0 51.7 55.5 50.1 53.4 58.2 19.6 0
NA0568B-AA20B Yellow 0 0 0 0 0 0 0 0
NA0569X-AA00B Red Recycled LDPE 0 52.5 56.9 50.3 54.7 60.7 26 0
NA0576A-AA00A Red Recycled LDPE 0 55.7 58.3 54.1 56.4 62.3 19.6 0
NA0576L-AA00A Red Recycled LDPE 0 55.7 58.3 54.1 56.4 62.3 19.6 0
NA0593A-AA00A Red Recycled LDPE 0 57.5 59.6 55.9 57.6 65.2 19.6 0
NA0593L-AA00A Red Recycled LDPE 0 57.5 59.6 55.9 57.6 65.2 19.6 0
NA0607A-AA00A Red Recycled LDPE 0 58.3 60.7 56.9 59 65.1 19.3 0
NA0607L-AA00A Red Recycled LDPE 0 58.3 60.7 56.9 59 65.1 19.3 0
NA0617A-AA00A Red 0 57.8 61.7 56 59.9 67.7 13 0
NA0633A-AA00A Red Recycled LDPE 0 59.6 63.7 58.1 62 70 18.8 0
NA0633L-AA00A Red Recycled LDPE 0 59.6 63.7 58.1 62 70 18.8 0
NA0651A-AA00A Red Recycled LDPE 0 63.3 66 61 63.7 70 20.4 0
NA0651D-AA00A Red Recycled LDPE 0 63.3 66 61 63.7 70 20.4 0
NA0665A-AA00A Red Recycled LDPE 0 62.7 66.5 61.1 64.6 69 19.7 0
NA0665L-AA00A Red Recycled LDPE 0 62.7 66.5 61.1 64.6 69 19.7 0
NA0684A-AA00A Red Recycled LDPE 0 66.1 68.4 64.2 66.7 72.7 19.8 0
NA0689A-AA00A Red Recycled LDPE 0 64.8 68.5 63.5 65.6 72.3 28.6 0
NA0704A-AA00A Red Recycled LDPE 0 67.7 70.4 66.2 69 74.2 20.8 0
NA0717A-AA00A Red Recycled LDPE 0 67.8 72.4 66.3 70.2 75 22.1 0
NA0732A-AA00A Red Recycled LDPE 0 70.1 74.3 69.2 71.8 78.1 20.7 0
NA0732L-AA00A Red Recycled LDPE 0 70.1 74.3 69.2 71.8 78.1 20.7 0
NA0742A-AA00A Red Recycled LDPE 0 68.6 74.2 67 70.6 78.3 29.1 0
NA0760A-AA00A Red Recycled LDPE 0 73.8 76 71.8 74.4 80.9 20.9 0
NA0760D-AA00A Red Recycled LDPE 0 73.8 76 71.8 74.4 80.9 20.9 0
NA0771A-AA00A Red Recycled LDPE 0 74.8 77.7 72.1 75.6 82.6 21.5 0
NA0771D-AA00A Red Recycled LDPE 0 74.8 77.7 72.1 75.6 82.6 21.5 0
NA0800A-AA10B Natural 0 77.23 79.61 75.18 77.5 87.8 16.7 1.3
NA0808A-AA00A Red Recycled LDPE 0 77.9 80.3 76.1 78.1 84.8 20.4 0
NA0808L-AA00D Red Recycled LDPE 0 77.9 80.3 76 78.1 0 20.4 0
NA0820A-AA00A Red Recycled LDPE 0 78.8 82 77.5 80.2 86 21.9 0
NA0820L-AA00A Red Recycled LDPE 0 78.8 82 77.5 80.2 86 21.9 0
NA0832A-AA00A Red Recycled LDPE 0 80.9 83.2 78.4 81.2 88.1 21.8 0
NA0838A-AA00A Red Recycled LDPE 0 77.9 83.8 76.5 81.8 87.8 30.4 0
NA0838D-AA20A Yellow Recycled LDPE 0 77.9 83.8 76.5 81.8 87.8 30.4 0
NA0845A-AA00A Red Recycled LDPE 0 79.6 84.5 78 72.8 87.8 25.7 0
NA0870A-AA00A Red Recycled LDPE 0 83.4 86.3 81 83.7 91 21.4 0
NA0870A-AA90A Blue Recycled LDPE 0 83.4 86.3 81 83.7 91 21.4 0
NA0873A-AA00A Red Recycled LDPE 0 84.1 87.3 83.3 85.6 92 21.6 0
NA0873L-AA00A Red Recycled LDPE 0 84.1 87.3 83.3 85.6 92 21.6 0
NA0895A-AA00A Red Recycled LDPE 0 87.7 90.5 85.8 88.6 95 21.8 0
NA0895L-AA00A Red Recycled LDPE 0 87.7 90.5 85.8 88.6 95 21.8 0
NA0896A-AA00A Red Recycled LDPE 0 88 90.9 86.6 89 95 21.8 0
NA0896L-AA00D Red Recycled LDPE 0 88 90.9 86.6 89 95 21.8 0
NA0932A-AA00A Red Recycled LDPE 0 90.1 92.3 86.6 87.8 100 23.4 0
NA0943A-AA00A Red Recycled LDPE 0 91.2 95.7 89.4 94.2 102 23.4 0
NA0943D-AA00A Red Recycled LDPE 0 91.2 95.7 89.4 94.2 102 23.4 0
NA0973A-AA00A Red Recycled LDPE 0 94.2 97.3 92 96 100.5 23.8 0
NA0973L-AA00D Red Recycled LDPE 0 94.2 97.3 92 96 100.5 23.8 0
NA0984A-AA00A Red Recycled LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5 0
NA0984A-AB10A Natural BIO LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5 0
NA0984D-AA00D Red Recycled LDPE 0 96.3 99.2 93.2 97.6 104.2 22.5 0
NA1012A-AA00B Red Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9 0
NA1012B-AA20B Yellow Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9 0
NA1012C-AA20B Yellow Recycled LDPE 0 98.9 101.4 97 99.5 115 0 0
NA1012L-AA00D Red Recycled LDPE 0 98.9 101.2 97.2 98.7 104.6 21.9 0
NA1024A-AA00B Red Recycled LDPE 0 101.96 102.5 95 100.6 108.8 25.15 0
NA1024L-AA00B Red Recycled LDPE 0 101.96 102.5 95 100.6 108.8 25.15 0
NA1062A-AA00B Red 0 103.6 0 0 0 0 0 0
NA1071A-AA00B Red Recycled LDPE 0 103.5 107.1 101.6 105.2 111.1 22.8 0
NA1071L-AA00D Red Recycled LDPE 0 103.5 107.1 101.6 105.2 111.1 22.8 0
NA1071S-AA00B Red Recycled LDPE 0 102.3 105 99.6 100.9 109.1 22.8 0
NA1107A-AA00B Red Recycled LDPE 0 103.9 110.7 102.1 108.4 113.7 31.5 0
NA1107L-AA00D Red Recycled LDPE 0 103.9 110.7 102.1 108.4 113.7 31.5 0
NA1122A-AA00B Red Recycled LDPE 0 110.5 113.8 108 111 119.5 27.5 0
NA1123A-BA00B Red LLDPE 0 109.4 112.3 107.2 110.6 117.2 24 0
NA1123L-BA00D Red LLDPE 0 109.4 112.3 107.2 110.6 117.2 24 0
NA1145A-AA00B Red Recycled LDPE 0 110.9 114.5 106.4 110 120.6 26 0
NA1146A-AA00B Red Recycled LDPE 0 112.9 115.5 110 113.5 119.5 24.3 0
NA1146D-AA00D Red Recycled LDPE 0 112.9 115.5 110 113.5 119.5 24.3 0
NA1186A-AA00B Red Recycled LDPE 0 115.3 118.6 113.6 116.5 123 23.8 0
NA1212A-AA00B Red Recycled LDPE 0 117.5 121.2 115.9 119.4 125.9 24.3 0
NA1212D-AA00B Red Recycled LDPE 0 117.5 121.2 115.9 119.4 125.9 24.3 0
NA1244X-AA00B Red Recycled LDPE 0 118.2 124.4 116 122.2 129.3 36.8 0
NA1244Z-AA00B Red Recycled LDPE 0 118.2 124.4 116 122.2 129.3 36.8 0
NA1261A-AA00B Red Recycled LDPE 0 123.5 126.1 121.5 124.5 137 24.9 0
NA1261L-AA00D Red Recycled LDPE 0 123.5 126.1 121.5 124.5 137 24.9 0
NA1277A-AA00B Red Recycled LDPE 0 126.2 127.7 123.5 126.5 130 25.9 0
NA1277D-AA00D Red Recycled LDPE 0 126.2 127.7 123.5 126.5 130 25.9 0
NA1310A-AA00B Red Recycled LDPE 0 128.6 131.6 126.5 129.5 139.5 25.6 0
NA1325A-AA00B Red Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5 0
NA1325A-AA90B Blue Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5 0
NA1325L-AA00D Red Recycled LDPE 0 126.2 133.6 123.4 130.6 143.5 26.5 0
NA1342A-AA00B Red Recycled LDPE 0 129.9 135 126.9 132.9 138 32.5 0
NA1342L-AA00B Red Recycled LDPE 0 129.9 135 126.9 132.9 138 32.5 0
NA1360A-AA00B Red Recycled LDPE 0 133.8 136 131.1 134.1 143.9 26.9 0
NA1360D-AA00D Red Recycled LDPE 0 133.8 136 131.1 134.1 143.9 26.9 0
NA1402A-AA00B Red Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2 0
NA1402A-AA10B Natural Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2 0
NA1402L-AA00D Red Recycled LDPE 0 137.6 140.2 135.9 138.9 149.4 27.2 0
NA1440A-AA00B Red Recycled LDPE 0 135.4 145.4 133.4 143.1 156.1 35.2 0
NA1487A-AA00B Red Recycled LDPE 0 142.8 148.7 141.4 146.9 152.5 28.5 0
NA1487L-AA00D Red Recycled LDPE 0 142.8 148.7 141.4 146.9 152.5 28.5 0
NA1510A-AA00B Red Recycled LDPE 0 148.7 152.2 144.9 149.8 166.3 27.3 0
NA1510D-AA00D Red Recycled LDPE 0 148.7 152.2 144.9 149.8 166.3 27.3 0
NA1579A-AA00B Red Recycled LDPE 0 151.6 157.9 149.7 155.7 167 29.1 0
NA1579L-AA00D Red Recycled LDPE 0 151.6 157.9 149.7 155.7 167 29.1 0
NA1605A-AA00B Red Recycled LDPE 0 158.5 160.5 156.1 158.7 168.9 27.3 0
NA1605L-AA00D Red Recycled LDPE 0 158.5 160.5 156.1 158.7 168.9 27.3 0
NA1643A-AA00B Red Recycled LDPE 0 160.8 164.3 157 161 170.6 38 0
NA1643L-AA00D Red Recycled LDPE 0 160.8 164.3 157 161 170.6 38 0
NA1653A-AA00B Red Recycled LDPE 0 158 165.7 154.5 162.4 167.9 40.2 0
NA1653L-AA00D Red Recycled LDPE 0 158 165.7 154.5 162.4 167.9 40.2 0
NA1682A-AA00B Red Recycled LDPE 0 165.5 168.2 1600.3 163.7 175 27.3 0
NA1711A-AA00B Red Recycled LDPE 0 167.5 171.1 165.1 169.5 180 28 0
NA1759A-AA00B Red Recycled LDPE 0 172.6 178.3 169.9 175.2 185.5 27.6 0
NA1759L-AA00D Red Recycled LDPE 0 172.6 178.3 169.9 175.2 185.5 27.6 0
NA1813A-AA00B Red Recycled LDPE 0 178.3 181.3 176.1 179.4 189 27.8 0
NA1857A-AA00B Red Recycled LDPE 0 178.8 185.7 176.3 183.7 193.8 35.1 0
NA1857L-AA00D Red Recycled LDPE 0 178.8 185.7 176.3 183.7 193.8 35.1 0
NA1934A-AA00B Red Recycled LDPE 0 187.4 193.4 185.5 191.5 201 29.6 0
NA1934L-AA00D Red Recycled LDPE 0 187.4 193.4 185.5 191.5 201 29.6 0
NA1946A-AA00B Red Recycled LDPE 0 189.7 194.6 187.6 192.7 203 29.1 0
NA1946L-AA00D Red Recycled LDPE 0 189.7 194.6 187.6 192.7 203 29.1 0
NA2008A-AA00B Red Recycled LDPE 0 196.7 200.8 194.2 198.1 215.9 31.6 0
NA2008L-AA00D Red Recycled LDPE 0 196.7 200.8 194.2 198.1 215.9 31.6 0
NA2020A-AA00D Red Recycled LDPE 0 191.5 202 189.82 200 219 0 0
NA2020L-AA00D Red Recycled LDPE 0 193 201.5 189.82 198.56 219 31.5 0
NA2032A-AA00B Red Recycled LDPE 0 199 203.2 196 200 213.5 44.8 0
NA2039A-AA00B Red Recycled LDPE 0 199.5 203.9 196.9 200.9 218 33.2 0
NA2039L-AA00D Red Recycled LDPE 0 199.5 203.9 196.9 200.9 218 33.2 0
NA2086A-AA00B Red Recycled LDPE 0 203.9 208.6 201 205 222.4 32.9 0
NA2137A-AA00B Red Recycled LDPE 0 206.4 213.7 202.8 209.5 216.8 45 0
NA2137D-AA00D Red Recycled LDPE 0 206.4 213.7 202.8 209.5 216.8 45 0
NA2210A-AA00B Red Recycled LDPE 0 213 221 209.8 217.8 231 40 0
NA2210L-AA00D Red Recycled LDPE 0 213 221 209.8 217.8 231 40 0
NA2270A-BA00B Red Recycled LDPE 0 218 227 214.8 224.5 236.9 45.5 0
NA2270L-BA00D Red LLDPE 0 218 227 214.8 224.5 236.9 45.5 0
NA2332L-AA00D Red Recycled LDPE 0 220 234 219.58 232 252 32.5 0
NA2480A-AA00B Red Recycled LDPE 0 241.2 248 238.2 245.5 259.5 45 0
NA2480L-AA00D Red Recycled LDPE 0 241.2 248 238.2 245.5 259.5 45 0
NA2518A-BA00S Red LLDPE 0 248.5 251.8 245.5 250.3 259 45.7 0
NA2571A-BA00B Red LLDPE 0 250.5 257.1 248 253.5 264.4 40.5 0
NA2571L-BA00D Red LLDPE 0 250.5 257.1 248 253.5 264.4 40.5 0
NA2630L-AA00D Red Recycled LDPE 0 248 263 247.44 260.3 280 41.5 0
NA2673A-BA00B Red LLDPE 0 261 267.3 254.9 263.7 273.3 51.3 0
NA2770A-BA00B Red LLDPE 0 270 277 267.5 273.9 287 50 0
NA2770L-BA00D Red LLDPE 0 270 277 267.5 273.9 287 50 0
NA2816L-BA00D Red LLDPE 0 272 282 270 279.4 300 48.5 0
NA2901A-BA00B Red LLDPE 0 282.4 290.1 278.4 285.6 297.7 40.3 0
NA2901L-BA00D Red LLDPE 0 282.4 290.1 278.4 285.6 297.7 40.3 0
NA3140A-BA00B Red LLDPE 0 303.4 314 300.1 310.8 332.7 55 0
NA3140L-BA00D Red LLDPE 0 303.4 314 300.1 310.8 332.7 55 0
NA3177A-BA00S Red LLDPE 0 314.8 317.7 310 316 335 60.4 0

Learn how our full service can add value to your business

Your full-service protection solution partner

Matching applications to mobility
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
Value added services
We’re application specialists. We are familiar with each segment’s unique challenges, from assembly conditions to ergonomics.
